Diesel Generators Sets 45Kva Power Plants 2250kva With Perkins Generator 1103A-33TG2 With ATS
| Perkins Genset Specification |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MB-P48 |
| Prime Powder | 48KW/60KVA |
| Power Factor | COSΦ=0.8(lagging) |
| Max. Output current | 86.4A |
| Genset Weight | 730KG |
| Length x Width x Height (Engine) (mm) | 1570×635×1190mm |
| Voltage | 400/230V |
| Frequency | 50HZ |
| Engine Specification |
| Manufacturer | England Perkins Engine Co. Ltd |
| Model | 1103A-33TG2 |
| Rated speed | 1500rpm |
| Prime Powder | 60.5KW/75.625KVA |
| Fuel Consumption | <=215g/KW.H |
| Lube oil capacity | 8.3L |
| Bore (mm) x Stroke (mm) | 105×127 mm |
| Compression ratio | 17.25:1 |
| Displacement (litre) | 3.3L |
| Coolant capacity, L | 10.2L |
| Configuration | 3 in line ,four-stroke, Turbocharged, Charge Air Cooled |
| Cooling | Liquid Cooled |
| Governor type | Electronic |
| Starting voltage | 24 Volts DC |
| Filtration system | Air Filter/Fuel Filter/Oil Filter |
| Alternator Specification |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MBC22C |
| Voltage Regulator | AVR |
| Voltage adjust range | ±1% |
| Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire |
| Steady-state Frequency | 5% |
| No-load Voltage Adjust Range | >=95%-105% |
| Insulation Class | H |
| IP Protection | 22 |
| Excitation Type | Blushless |

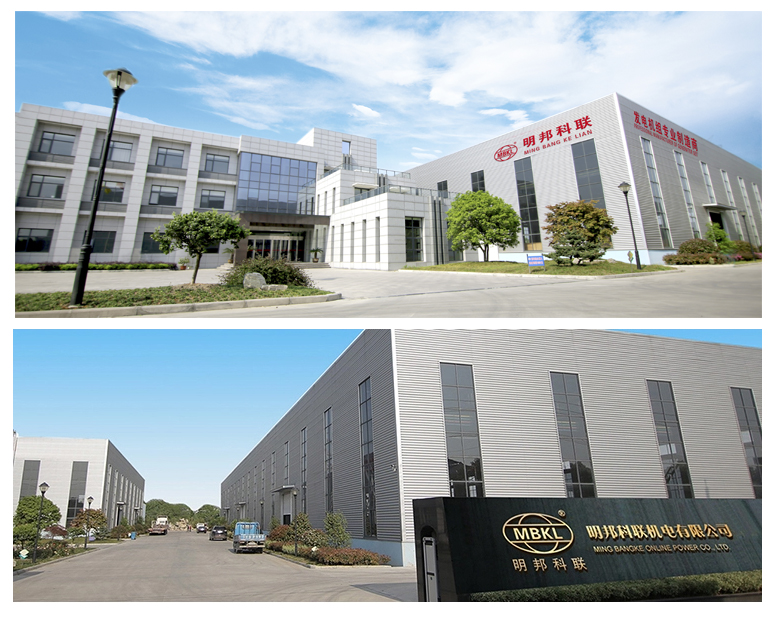

About MingBang Intelligent Technology
Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai
Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
Our customers
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.
More details for diesel generator sets ,please contact us any time
Welcome to orders~
