SDEC SDEC diesel generator sets features:engines are worldwide well known because of their quality and reliability.

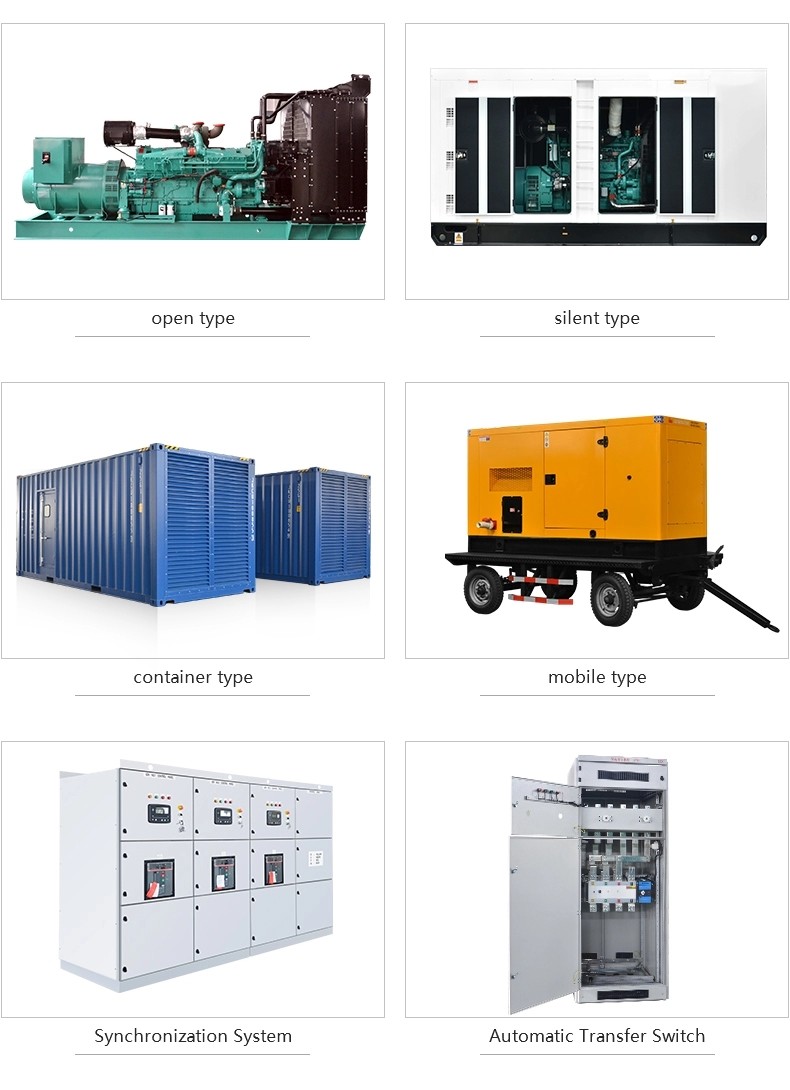

A diesel generator set consists of a water-cooled or air-cooled diesel engine driving a three-phase or single-item generator (electric ball) with a controller and a common base.In addition to the open frame type is silent type, four - wheel mobile trailer type, two - wheel mobile generator set.In addition to the controller and ATS double power switching switch, the automatic control of the generator can be realized.The rotating speed is 1500 and 1800 rotations, corresponding to 50HZ and 60HZ two specifications.According to customer needs, we customize brushless and brush motor to meet customer needs.
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | | Model | MB-S50 | | Prime Power | 55KW/68.75KVA | | Standby Power | 60KW/75KVA | | Power Factor | COSΦ=0.8(lagging) | | Max. Output current | 99A | | Genset Weight | 1400KG | | Length x Width x Height (Engine) (mm) | 2150*750*1135 | | Voltage | 400/230 | | Frequency | 50HZ | | Shanghchai Engine Specification | | Brand | SDEC | | Model | SC4H95D2 | | Rated speed | 1500rpm | | Prime Power | 62KW/77.5KVA | | Standby Power | 68KW/85KVA | | Fuel Consumption | <=204g/KW.H | | Lube oil capacity | 15 L | | Bore (mm) x Stroke (mm) | 105×124 mm | | Compression ratio | 16.5:1 | | Displacement (litre) | 4.3L | | Coolant capacity, L | / | | Configuration | 4 in line ,four-stroke, Turbocharged, Charge Air Cooled | | Cooling | Liquid Cooled | | Governor type | Electronic | | Starting voltage | 24 Volts DC | | Filtration system | Air Filter/Fuel Filter/Oil Filter | | Stamford Alternator Specification | | Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | | Model | MBC22C | | Voltage Regulator | AVR | | Voltage adjust range | ±1% | | Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire | | Steady-state Frequency | 5% | | No-load Voltage Adjust Range | >=95%-105% | | Insulation Class | H | | IP Protection | 22 | | Excitation Type | Blushless | |
About our factory
Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai
Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
Diesel Generator Set AC Three Phase Output Type And 220V Rated Voltage Silent Diesel Generator Set 50kw 90kva
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
